SCANNER
Compact 3D Face Scanner specialized in clinical environment
with fast scan within 0.8 second
and accuracy in 0.5mm.
Specification
Size
140mm x 270mm x 320mm(H)
Weight
3kg
Scanning Speed
0.8 sec
Light Source
DLP Structured Light
Scanning Method
3D Face Scan based on Structured Light
3D Data Accuracy
0.5mm Vertex Spacing
Scanning Technology
0.8 second scan converts the face to 3D data.
By combining scanner and structured light technique,
FACECAST can quickly and accurately acquire 3D face data.
Fast & Easy 3D Facial Scanning
Fast & Easy 3D Face Scanning
See the result before the treatment
MPS accurately measures length, ratio, and volume of each facial part.
Instead of relying on simple detection, it offers analysis based on quantified data,
making consultation more persuasive and professional.
Function
- Scanning Time: 0.8 second
- of Data Vertex: 228,438
- Length Accuracy: Average 0.08mm
- Standard Deviation: 0.1mm
Scanner Size & Weight
- Size : H27 × W14 × D32 cm
- Weight: Approx. 2.5kg
Imaging Techniques
- Method: RGB Structured Light
- Light Source: Power White LED
- Power Source: DC 12V
Minimum Requirement
- CPU: Intel i3-10100
- RAM: 16GB
- HDD: 1TB
- Graphic Card: Intel Iris Xe

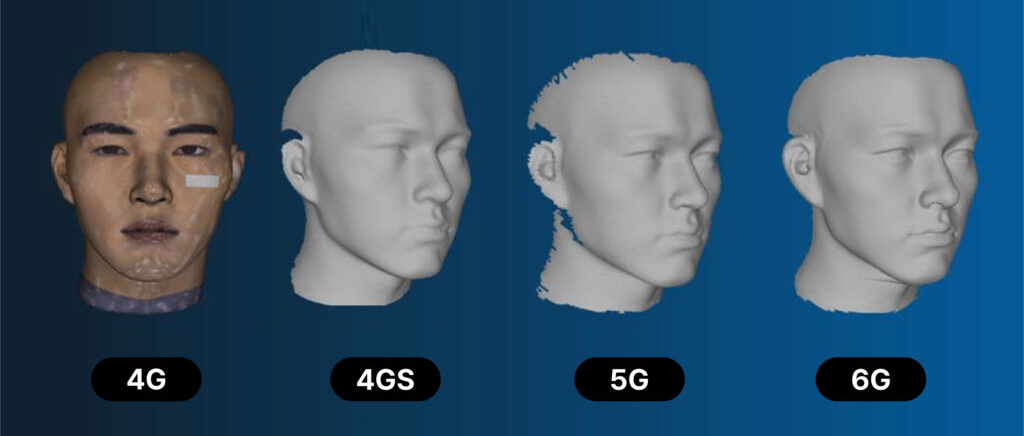

Evolution
Improvement in Hardware
FACECAST has continuously improved scanning
accuracy through multiple generations

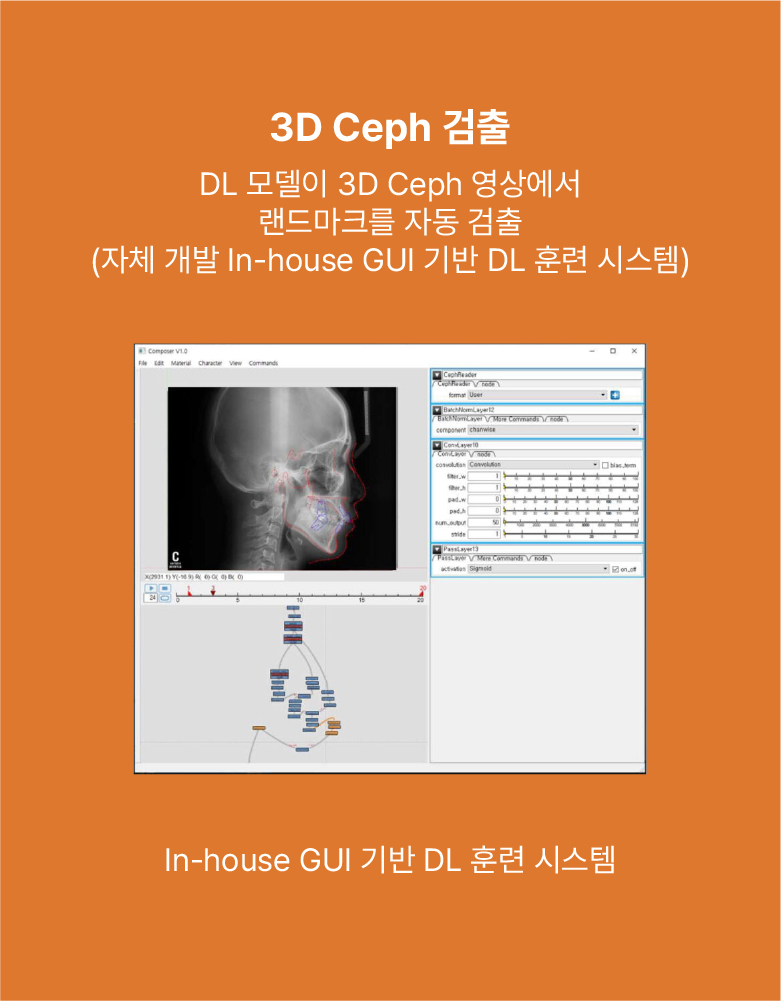

AI Landmark Detection
AI now detects the landmarks that were previously done manually.
Our deep learning model automatically detects
anatomical landmarks with consistent accuracy.
AI Landmark Detection
AI Landmark Detection
- Improved detection accuracy in areas that were previously difficult to identify, such as the back of the neck and auricular cartilage
- Our deep learning (DL) model automatically detects anatomical landmarks.
- AI identifies measurement points that previously had to be marked manually,
- with greater precision and consistency.
Accuracy Enhancement
Accuracy Enhancement
- Improved detection accuracy in areas that were previously difficult to identify, such as the back of the neck and auricular cartilage
- Added a 3D landmark detection system using 3D depth data
(from conventional 2D texture-based positioning to depth-analysis-based localization)
Fast & Easy 3D Facial Scanning
Fast & Easy 3D Face Scanning
See the result before the treatment
MPS accurately measures length, ratio, and volume of each facial part.
Instead of relying on simple detection, it offers analysis based on quantified data,
making consultation more persuasive and professional.
4G
5G
6G
7G
